Heavy Work lathe

Heavy Work lathes designed for precisely machining relatively hard materials. These rigid machine tools remove material from a rotating workpiece via the movements of various cutting tools, such as tool bits and drill bits.

Specification:
Size: 8 foot
Features:
Superior functionality
Easy to operate
Less maintenance

Balancing Machine

Imbalance can be caused by deposits on rotor shaft, an event wear of rotor shaft and damage during operation which is caused by foreign objects. Low speed dynamic balancing is essential to maintain healthy equipment. It is important that rotor shaft should be regularly checked to ensure that they are properly balanced. Correctly balanced rotor shaft reduces vibration during operations, thus saving wear and tear.

Advantages :
Less damage/wear bearings
shafts and rotors
Reduced energy costs
Fewer machinery breakdowns/loss of production
Extended bearing and equipment life.

In our workshop, we can balance virtually all rotors weighing from 5kg to 1500kg using SCHENCK CAB920 balancing machine.

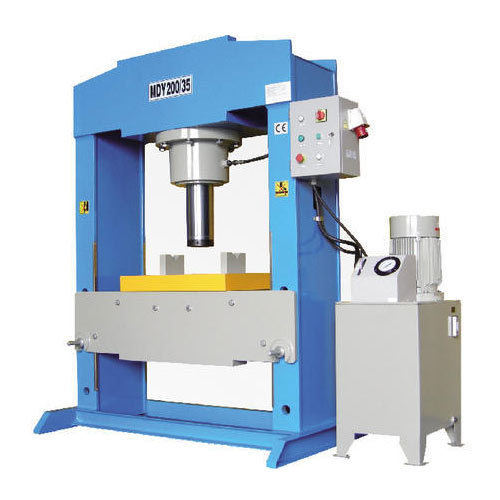

Hydraulic press

A hydraulic press is a machine press using a hydraulic cylinder to generate a compressive force. It uses the hydraulic equivalent of a mechanical lever. Hydraulic presses are commonly used for forging, clinching, moulding, blanking, punching, deep drawing, and metal forming operations. The hydraulic press is advantageous in manufacturing, it gives the ability to create more intricate shapes and can be economical with materials. A Hydraulic press will take up less space compared to a mechanical press of the same capability.

Surge Testing Machine (10 KW)

The Surge Comparison tester checks the strength of ground insulation that consists of enameled insulation. It detects the insulation failures such as turn-to-turn shorts, layer-to-layer shorts, coil-to-coil shorts, winding-to-winding shorts, and phase-to-phase shorts. Open circuit and ground detection are other benefits of surge testing. The Surge tester uses the principle of impedance balance to test the quality of electrical windings.The Surge tester works as a capacitive-discharge system. A capacitor is charged with high voltage and then discharged into the winding, through a solid state assembly. This sequence is repeated thus stressing the insulation of the winding with high voltage pulses. The resulting voltage decay pattern of two winding is then displayed on the CRT. The waveform pattern will be perfectly superimposed for good windings but in case of a defective winding a double wave pattern will appear on the screen as one wave pattern from the good winding plus the erratic pattern from the faulty winding.

High Voltage Testing

High Volt Test equipment is the industry-leading suite of products for detecting weaknesses and faults in the insulation systems of electric motors, generators and coils. Employing both low-voltage and high-voltage tests – such as Baker’s signature surge test - these essential troubleshooting and predictive maintenance tools allow maintenance professionals to assess any need to maintain or replace specific motors and generators that support their business. Equally at home in the motor repair shop or on a plant floor, these testers ensure that the electrical condition of your rotating machinery is understood.

Milli-Ohm Testing

Milli-Ohmmeters designed to measure low resistance at high accuracy confirming the value and integrity of any electrical circuit and connection. These meters may be used to evaluate component or circuit resistance in PC board resistance in laboratories and research and design departments, motor winding opens and shorts, transformers, heating elements, contact resistances of switches and connectors or low resistance connections for bonding.

Lift Fork

Specification
Capacity : 1000 Kgs
Fork Length : 785 mm
Lowered Height of Fork : ≤90
Max. Lifting Height : 1600 mm

Features
Steel material.
Sturdy, compact enough, easy to operation.
Smooth performance, exceptional durability.
Lifting function operated by foot and hand controls.

Chain Blocks 7.5 Ton

Product Specification
Capacity : 7.5 Ton
Weight of Block at : 3 Mtr. Lift: 80 Kgs.
Extra Weight per Meter : 8.0 Kgs
No. of Falls of Load Chain : 2 Falls
Overall Dimensions : 850 x 320 x 230 mm (Head room x Other Dimensions)
Pull On Hand Chain : 64 Kgs. – Only one person required to lift the load.
Velocity Ratio : 188
Features
Triple Spur Gear type – available in Heavy Duty & Light Duty Models
Designed to minimize Effort – Only one person reqd. to lift the load upto 5Ft.
Product Design Test – accomplished successfully as per the requirement of IS: 3832 – 2005
Product Endurance Test - 100 Hrs. of running at Hand Chain Pulling Speed of 20 Mtr. / Min
Each block tested at 50% Overload

On Site Chain Block

Product Specification
Capacity : 2.5 Ton
Weight of Block at : 3 Mtr. Lift: 30 Kgs.
Extra Weight per Meter : 8.0 Kgs
No. of Falls of Load Chain : 2 Falls
Overall Dimensions : 650 x 220 x 210 mm (Head room x Other Dimensions)
Pull On Hand Chain : 53 Kgs. – Only one person required to lift the load.
Velocity Ratio : 188
Features
Triple Spur Gear type – available in Heavy Duty & Light Duty Models
Designed to minimize Effort – Only one person reqd. to lift the load upto 5Ft.
Product Design Test – accomplished successfully as per the requirement of IS: 3832 – 2005
Product Endurance Test - 100 Hrs. of running at Hand Chain Pulling Speed of 20 Mtr. / Min
Each block tested at 50% Overload

Vehicle Facility

Star Electrical Works & Engineerig company has its own transportation system to port materials from clients place to the workshop and back with atmost safty and security.

Undercutting Machines

The semi automatic undetcutting machine can accommodate various size armatures and is deisgn to ensure that undercutting is carried out to Star Electrical Works & Engineering quality standards.
